Description

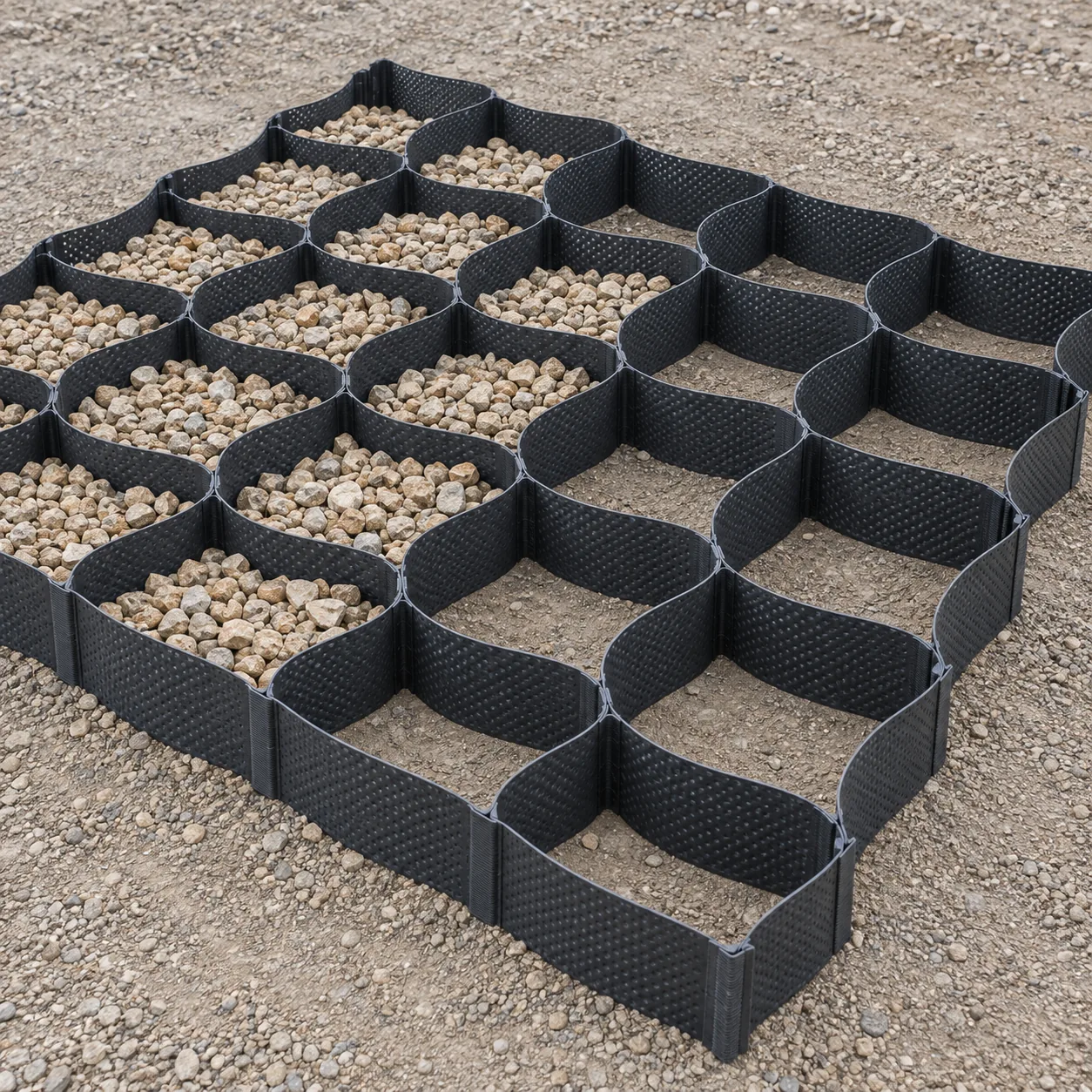

Three-dimensional polymer cells for confinement of specified infill. BRELVO can coordinate available constructions against drawings and project requirements; a final grade must be confirmed for each enquiry.
Applications
- Low-volume access roads and soft-ground support
- Slope surface stabilization
- Channel and shoreline erosion control
Indicative parameters
Ranges below are examples from supplied supplier literature, not guaranteed values or an approved project specification. See the Additional information tab for the parameter list.
- Polymer: HDPE or PP – confirm configuration
- Indicative cell height: 75-200 mm (supplier sample configurations)
- Indicative weld spacing: 330-712 mm (supplier sample configurations)
- Infill: Project-specific aggregate, soil or concrete
Engineering review
- Sheet thickness, weld spacing and panel dimensions
- Seam peel and strip properties
- Infill gradation and compaction
- Anchorage, drainage and edge restraint
Technical reference and reports
Download the BRELVO Geosynthetics Technical Selection Guide (PDF). This is a preliminary selection brief, not an independent test report or certification. Ask for the current grade-specific datasheet and batch/project test records before specifying or ordering.
Send your project requirements and request the current technical documents.
Illustrative product image. Technical source used for this overview: Geocell.pdf, product properties and installation section.
