Description
Two-direction polypropylene grid for designed aggregate stabilization. BRELVO can coordinate available constructions against drawings and project requirements; a final grade must be confirmed for each enquiry.
Applications
- Paved and unpaved road base stabilization
- Temporary working platforms
- Rail and hardstand aggregate layers where designed
Indicative parameters
Ranges below are examples from supplied supplier literature, not guaranteed values or an approved project specification. See the Additional information tab for the parameter list.
- Polymer: PP
- Reinforcement direction: Biaxial
- Indicative nominal MD/CD tensile: 15/15 to 50/50 kN/m (supplier sample grades; not design strength)
- Indicative roll width: 1-6 m (supplier sample range)
Engineering review
- Tensile response in both directions
- Aperture, rib and junction properties
- Aggregate grading and layer thickness
- Installation damage and traffic loading
Technical reference and reports
Download the BRELVO Geosynthetics Technical Selection Guide (PDF). This is a preliminary selection brief, not an independent test report or certification. Ask for the current grade-specific datasheet and batch/project test records before specifying or ordering.
Send your project requirements and request the current technical documents.

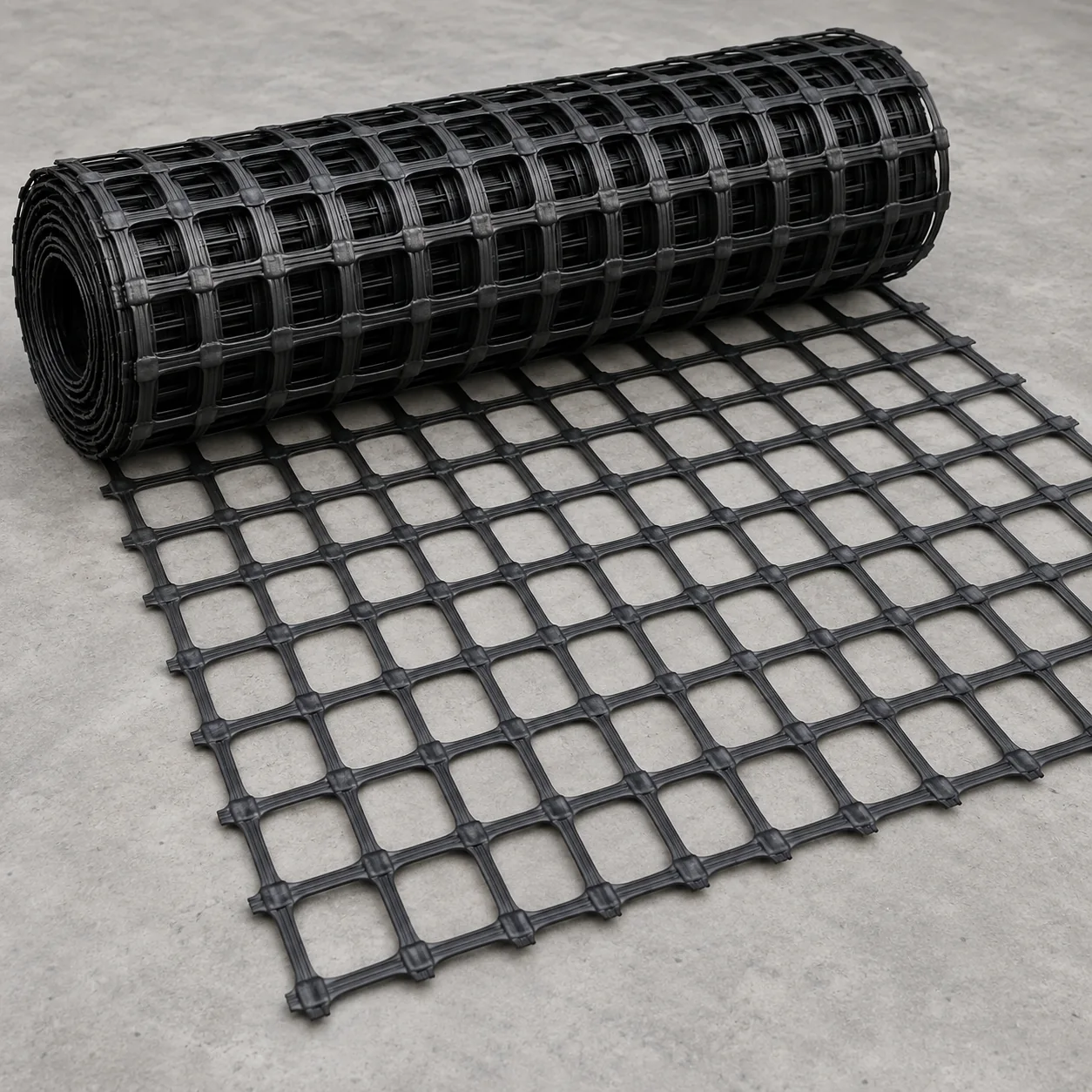

Illustrative product image. Technical source used for this overview: Plastic Geogrid.pdf, PP biaxial product properties.
